QUICK SHIP: IN LOCAL STOCK (US)

AR:ONE FRAME

$2,198.90

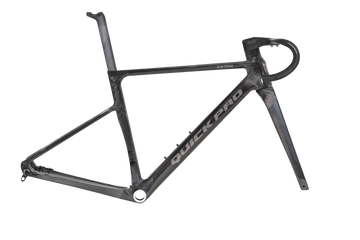

Color · Raw Carbon Black

Size

NOT SURE WHICH SIZE?

Height based recommendation only. Not sure? Consider bike fitting or demo a Quick Pro in one of the dealerships near you.

COCKPIT

NO COCKPIT — FRAME SHIPS ALONE

ZEPHYR SSL Handlebar → +$200.00~~Regular price $418.00~~

Bundle price when added to this frame.

Handlebar Width (mm) · —

Stem Length (mm) · —

Boxed and checked. Ships fast.

FRAME ONLY — NO COCKPIT TOTAL $2,198.90

5-YEAR FRAME WARRANTY

WHAT SHIPS

WHAT'S IN THE BOX

The frame ships boxed — fork, headset and seatpost included, checked by our mechanics.

FRAME: T1100 & M65 carbon frame · 799g (±5%) · thru-axles included
FORK: Carbon fork
HEADSET: Bearings + spacers included
SEATPOST: Carbon seatpost
COCKPIT: Not included — add one to complete the frameset

Boxed and checked. Ships fast.

KEY FEATURES

Engineered, not assembled.

Monolith Technology

By forming the main triangle and rear stays in a single mold process, the frame drastically reduces joints and bonding points, resulting in enhanced stiffness, strength, and structural integrity.

Advanced Materials

Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.

Ultra-Light Integrated Handlebar

Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

GEOMETRY · DRAWN TO SCALE

The frame, drawn line by line.

Full measurements for every size are in the table below.

GEOMETRY · ACROSS SIZES

Frame geometry by size. The column matching your selected size is marked.
REF	SIZE	XS	S — selected size	M	L	XL	XXL
—	RIDER (CM)	155–165	163–173	170–180	178–188	185–193	190–198
—	STACK (MM)	504	517	535	552	567	588
—	REACH (MM)	375	382	387	391	402	412
D	HEAD ANGLE	70.0°	71.0°	72.0°	73.0°	73.0°	73.5°
C	SEAT ANGLE	75.0°	74.5°	74.0°	73.5°	73.5°	73.5°
G	WHEELBASE (MM)	982	985	986	987	1002	1014
A	SEAT TUBE (MM)	430	460	490	520	550	580
B	TOP TUBE (MM)	510	525	540	555	570	589
E	HEAD TUBE (MM)	105	115	130	145	160	180
F	CHAINSTAY (MM)	408	408	408	408	408	408
H	FORK OFFSET (MM)	50	50	45	45	45	45
I	BB DROP (MM)	71.65	71.65	71.65	71.65	71.65	71.65
J	FORK LENGTH (MM)	370	370	370	370	370	370
K	STANDOVER (MM)	710.5	736	761.5	787	812.5	837
—	STACK-TO-REACH RATIO	1.34	1.35	1.38	1.41	1.41	1.42

VERIFIED OWNER BUILDS

THE OWNERS' WALL

Real bikes, real paint, real delivery notes.

Rated 4.93 out of 5.4.9 — 14 REVIEWS

Reviews of the AR:ONE FRAME — the same frame and build, made to your order.

ANONYMOUS

Great all rounder frame. It shines on the climbs. The biggest nitpick though I had was the seatpost battery holder - it's really easy to strip. I had to use foam which did a better job at holding the battery TBH. Other than that, I encountered no issues with the build.

VERIFIED

ANONYMOUS

This frameset is light, stiff and a pleasure to ride.

VERIFIED

ANONYMOUS

BEST FRAME EVER

VERIFIED

QUICK SHIP FAQ

QUESTIONS

GENERAL FAQ

How fast does it ship?

This frame is already boxed in our US warehouse — there is no build queue. It ships as soon as the carrier picks it up.

How many shipments should I expect?

Your frame ships from the warehouse that stocks it. A cockpit or other add-ons may ship from a different warehouse as a separate package with its own tracking number — so one order can arrive as more than one delivery, sometimes on different days.

What exactly is in the box?

Frame, fork, headset and seatpost ship as listed. A cockpit is priced on its own and may ship as its own package. For custom paint, the same frame is available built to your order.

What if my size or color isn't shown?

Quick Ship lists only what is boxed right now. Every other size and color can be built for you on the configurable version — about 4–6 weeks from order to door.

ANYONE CAN RACE

Want a different spec or custom paint? The same frame, built to your order.

CONFIGURE YOUR OWN BUILD →
