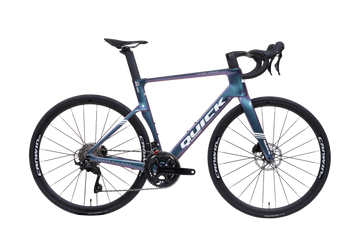

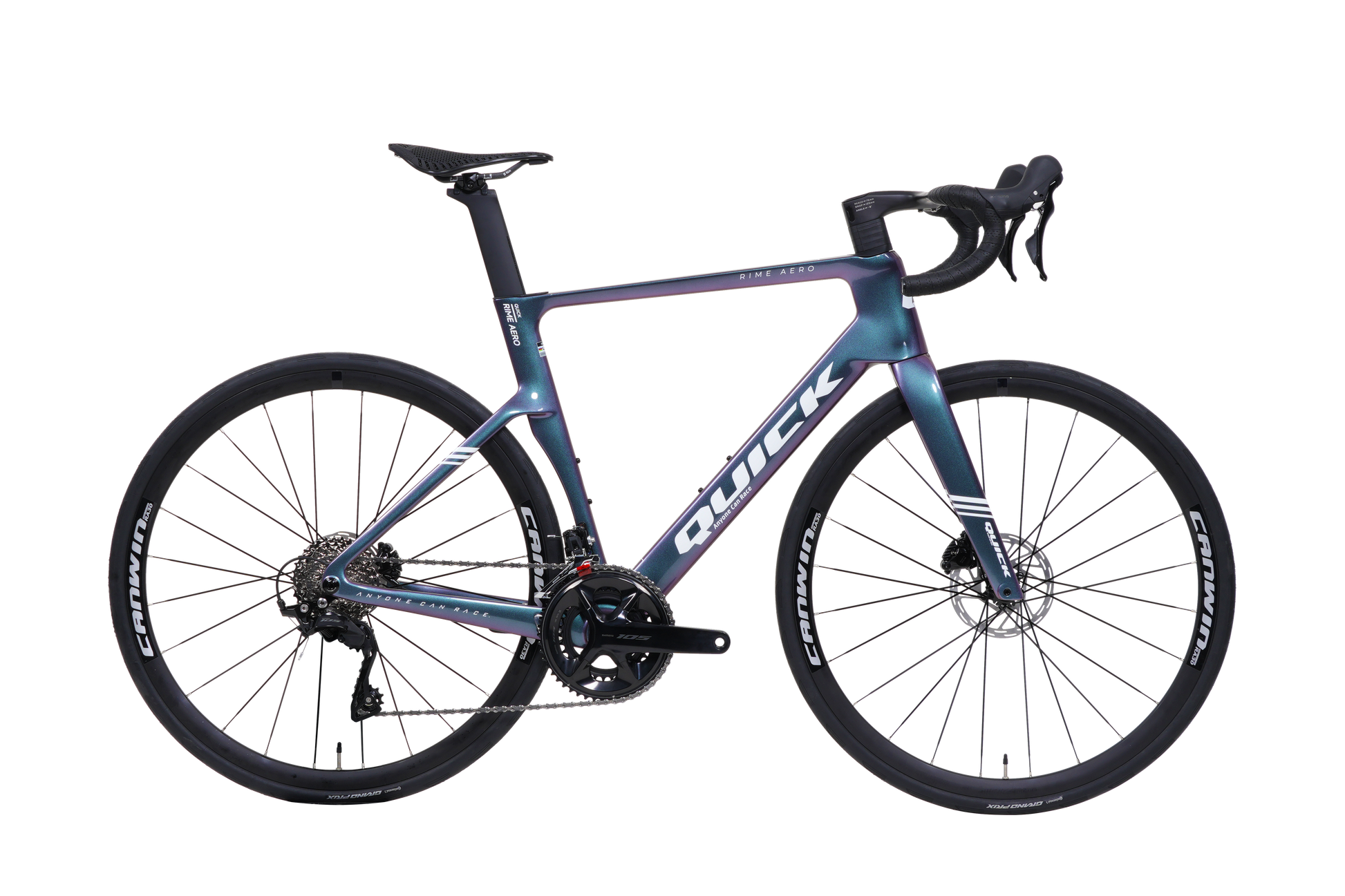

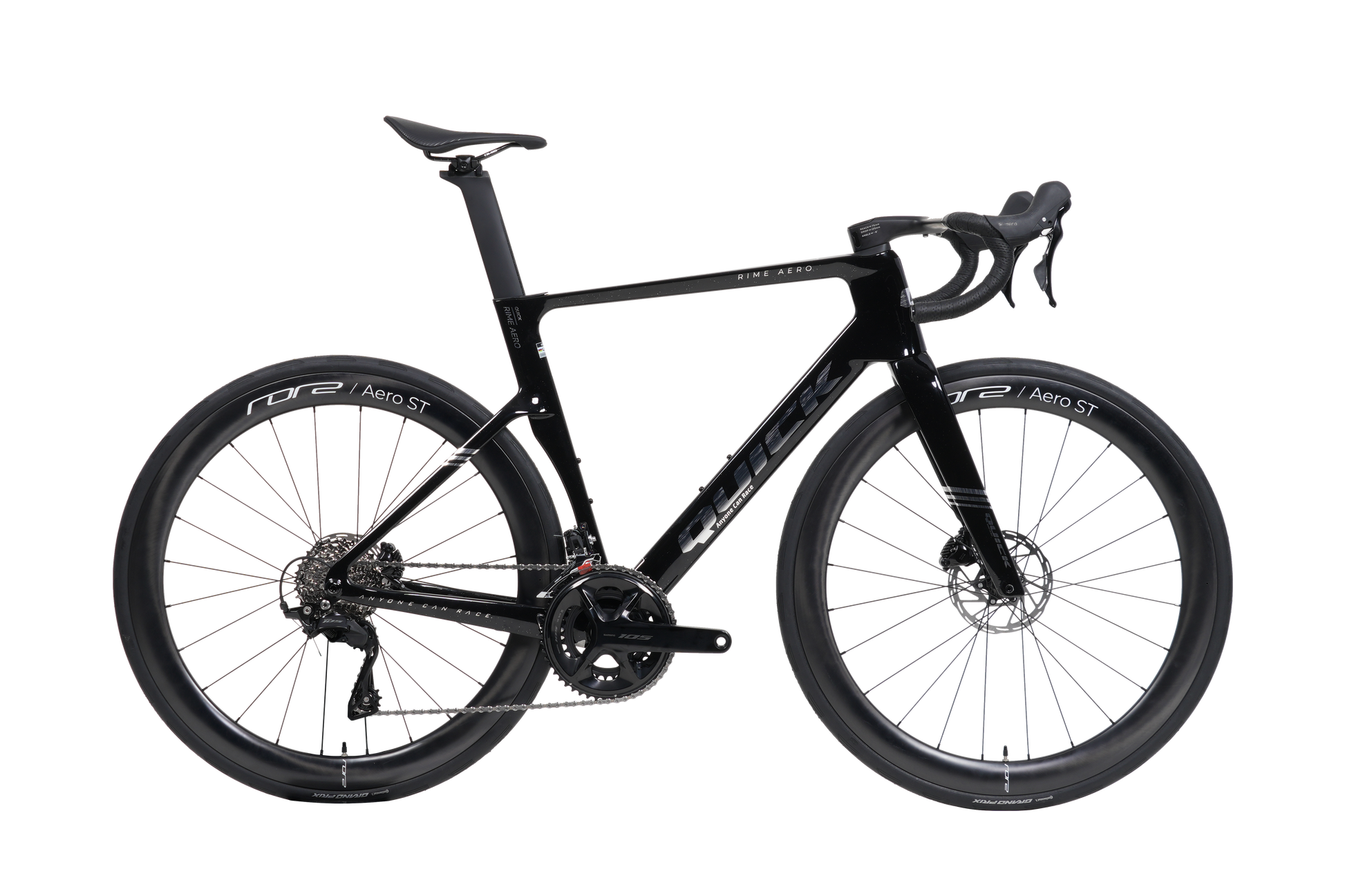

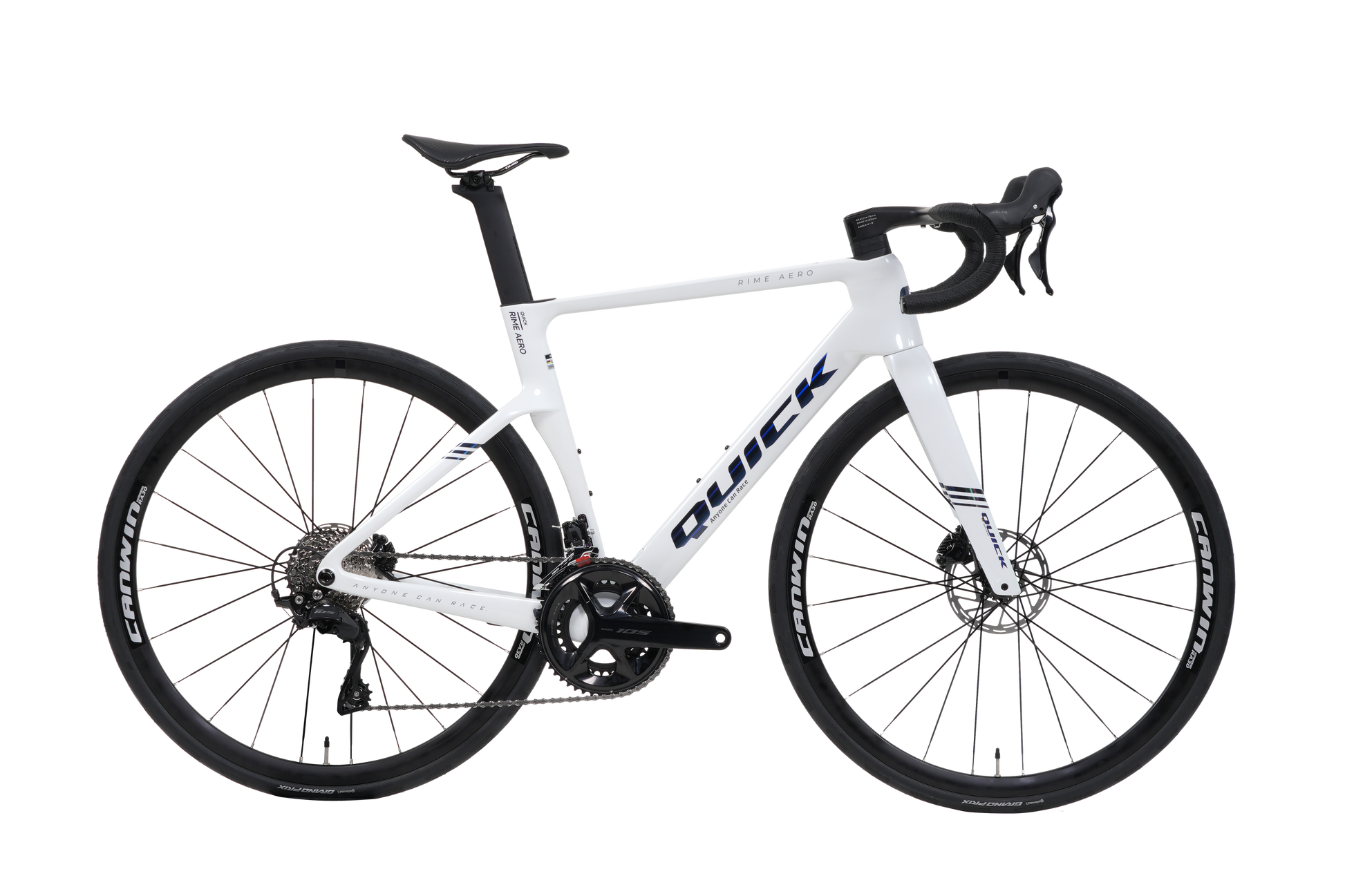

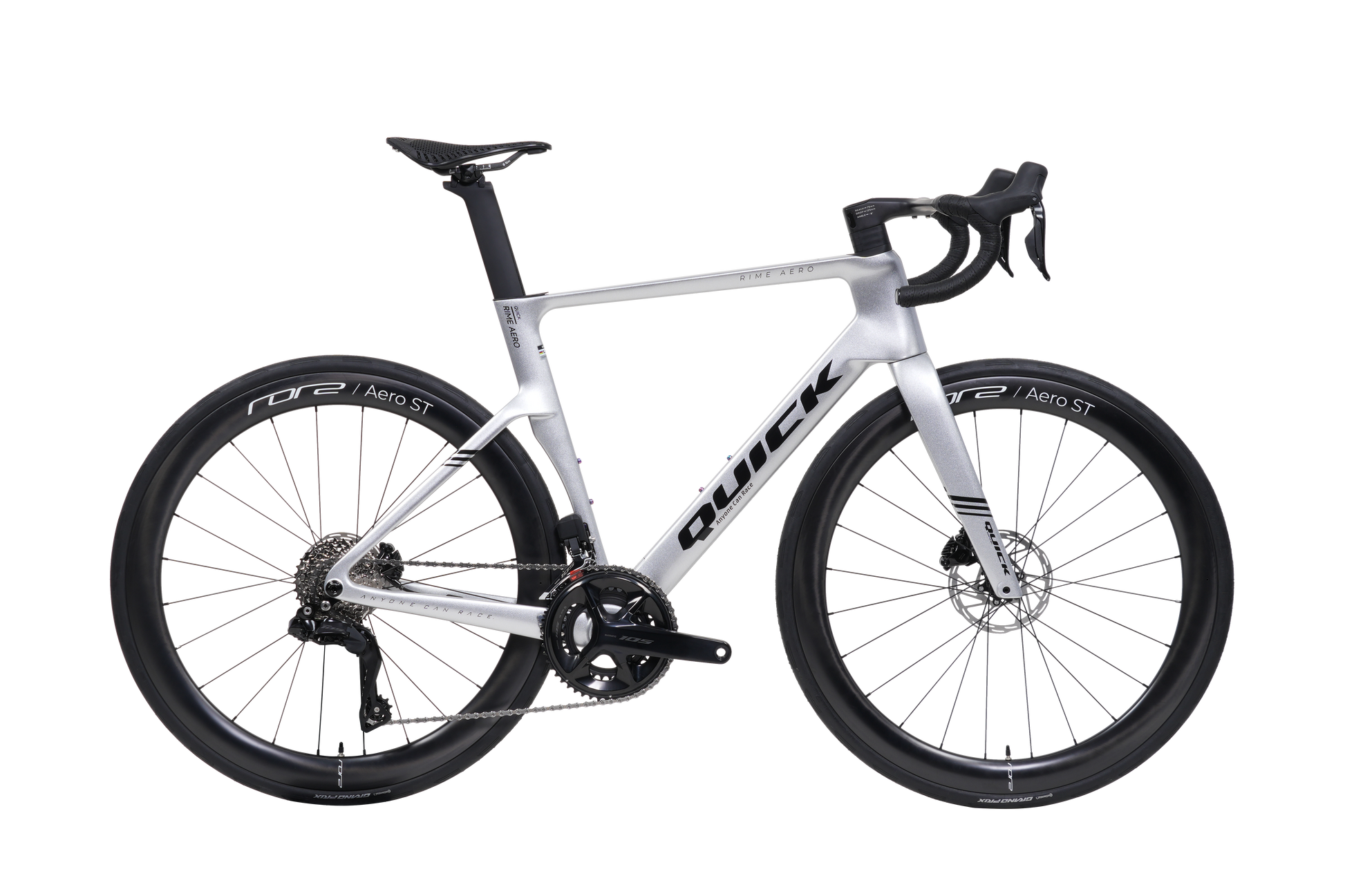

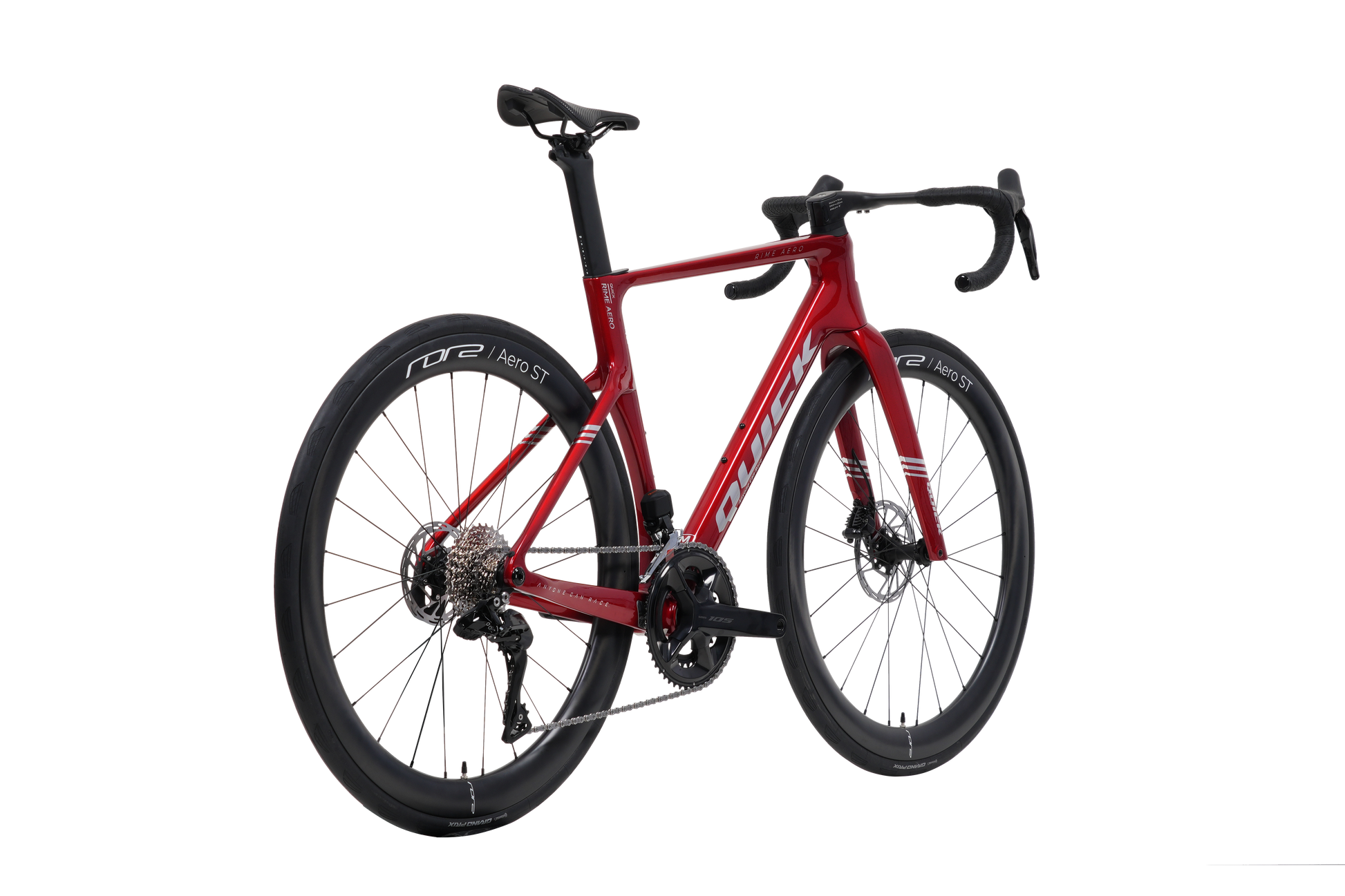

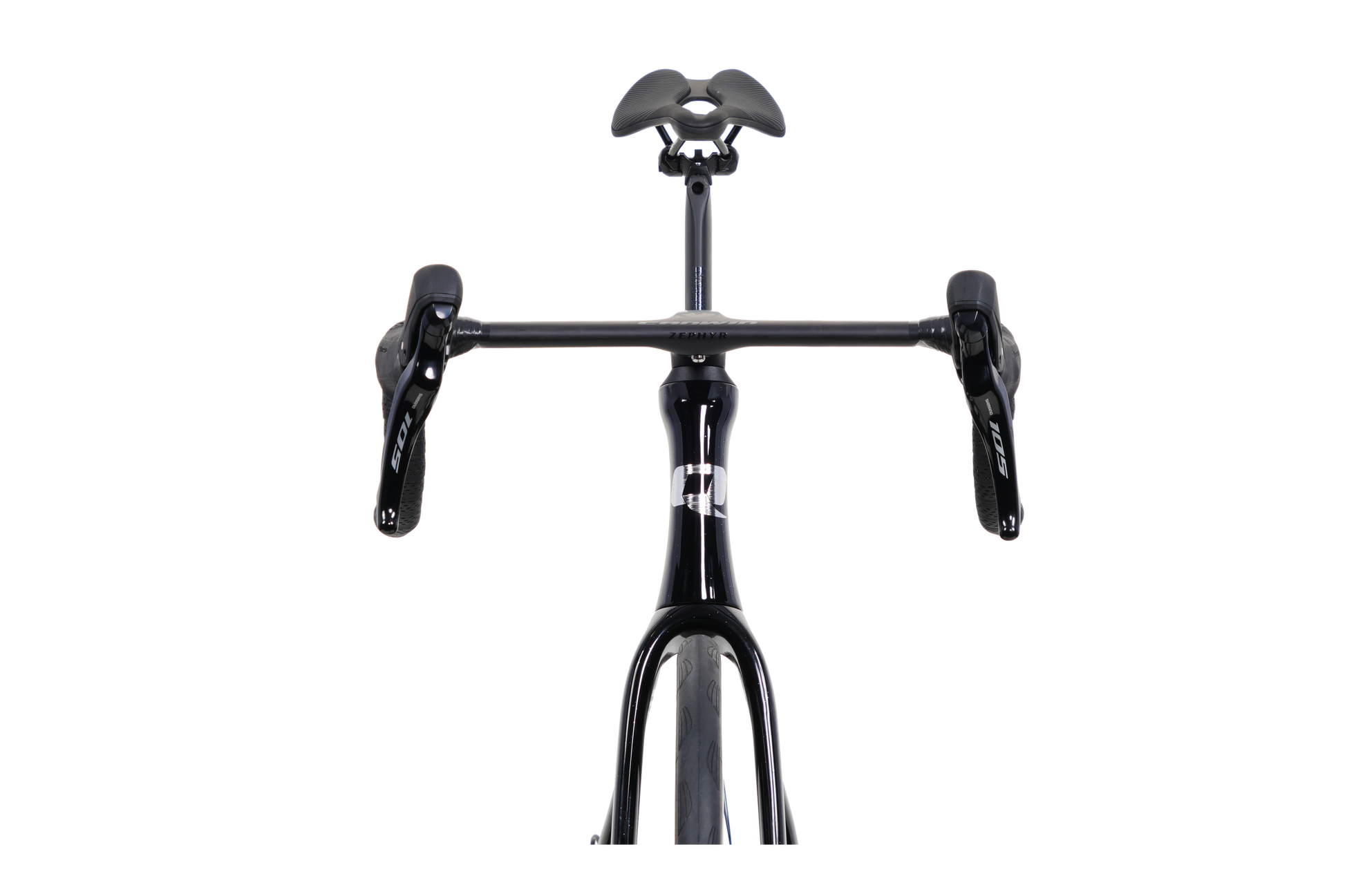

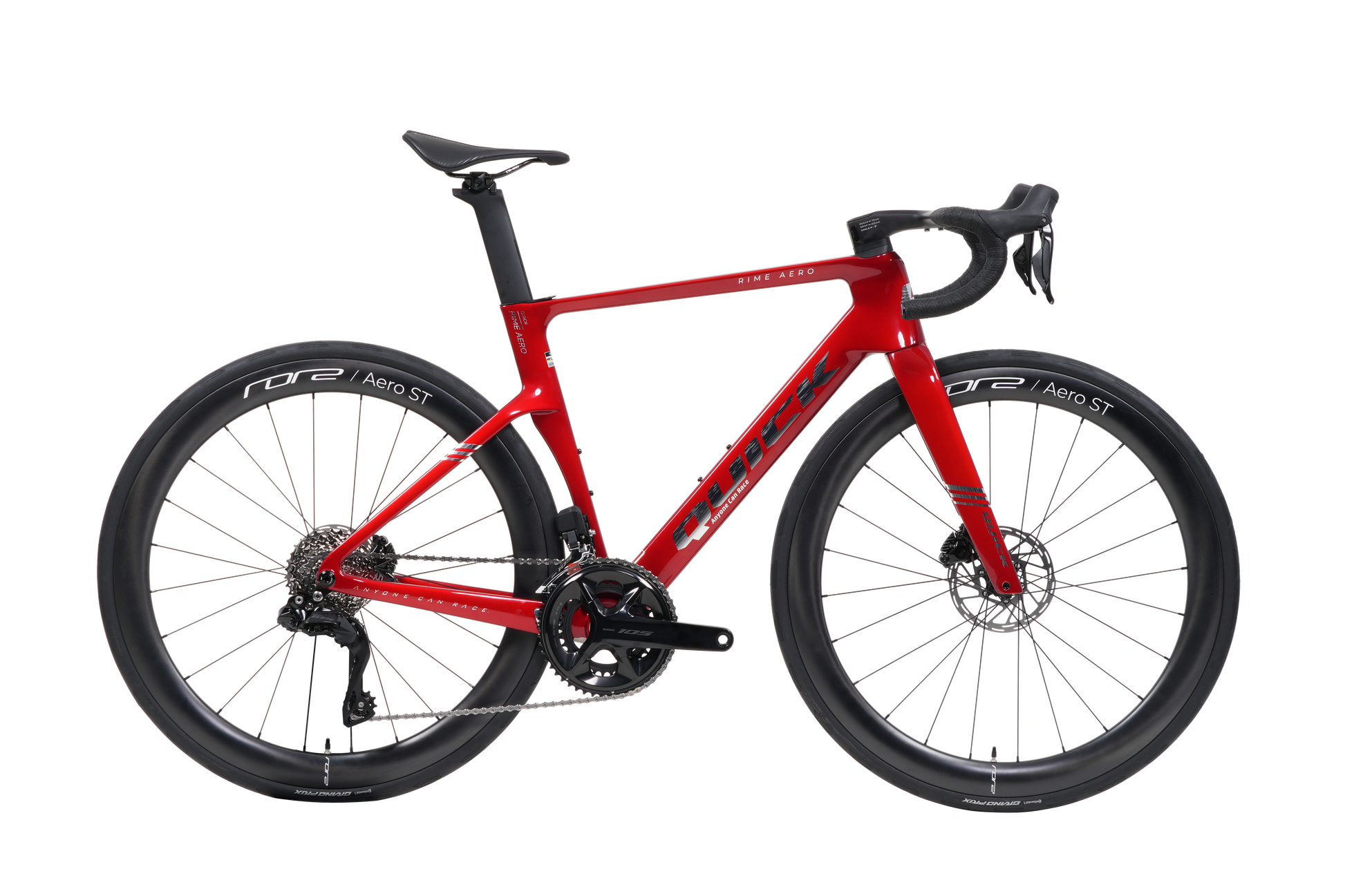

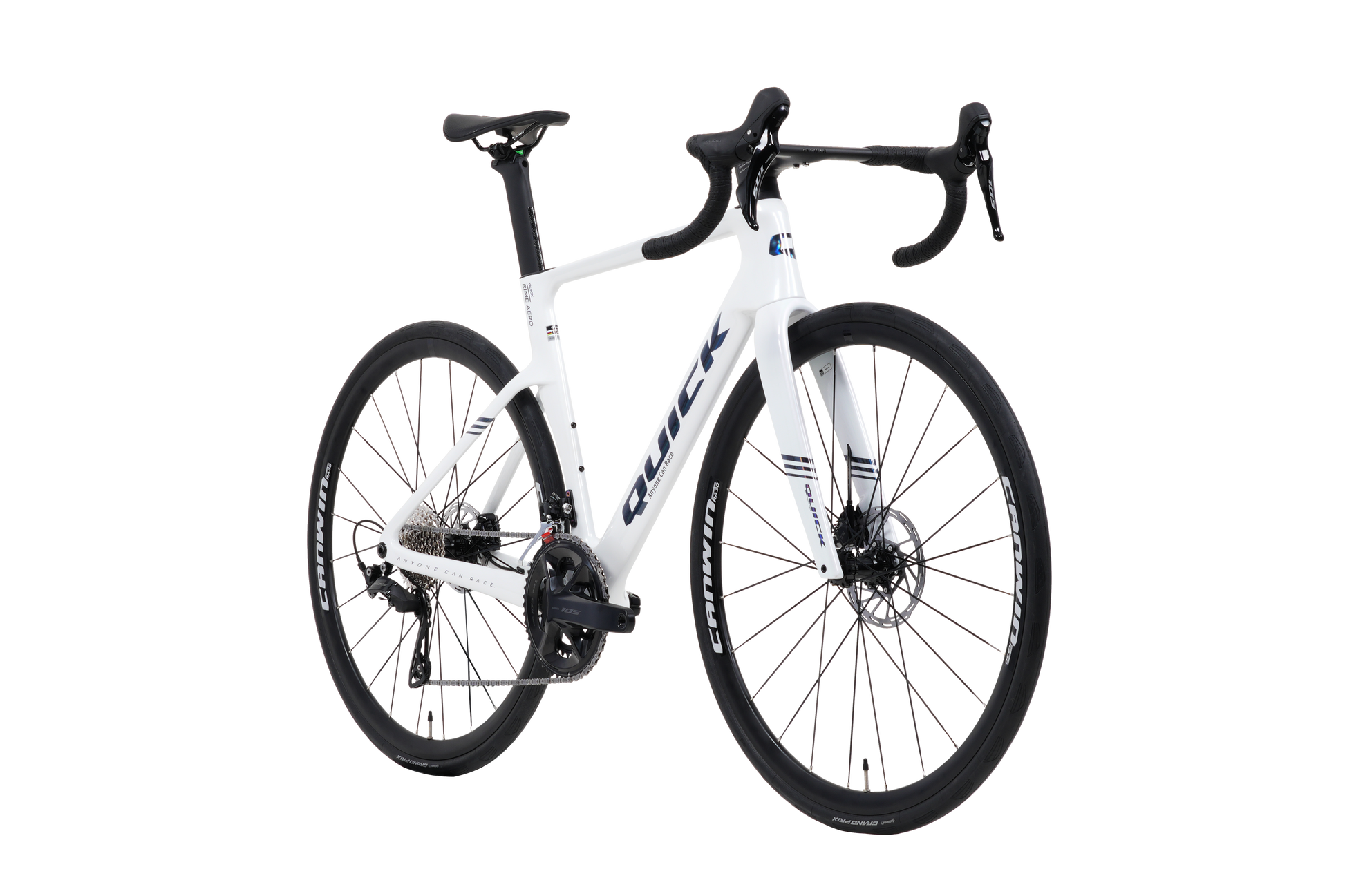

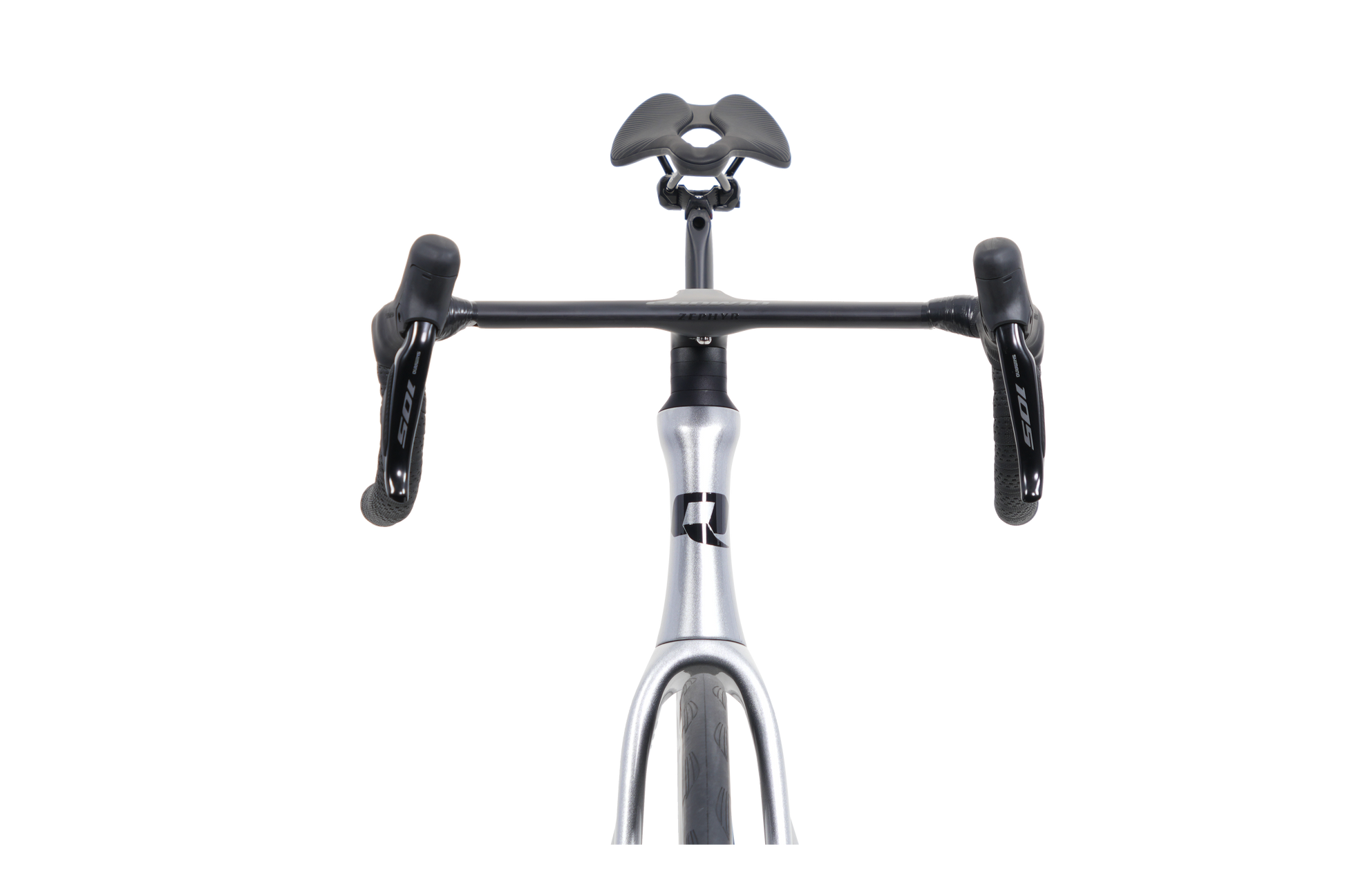

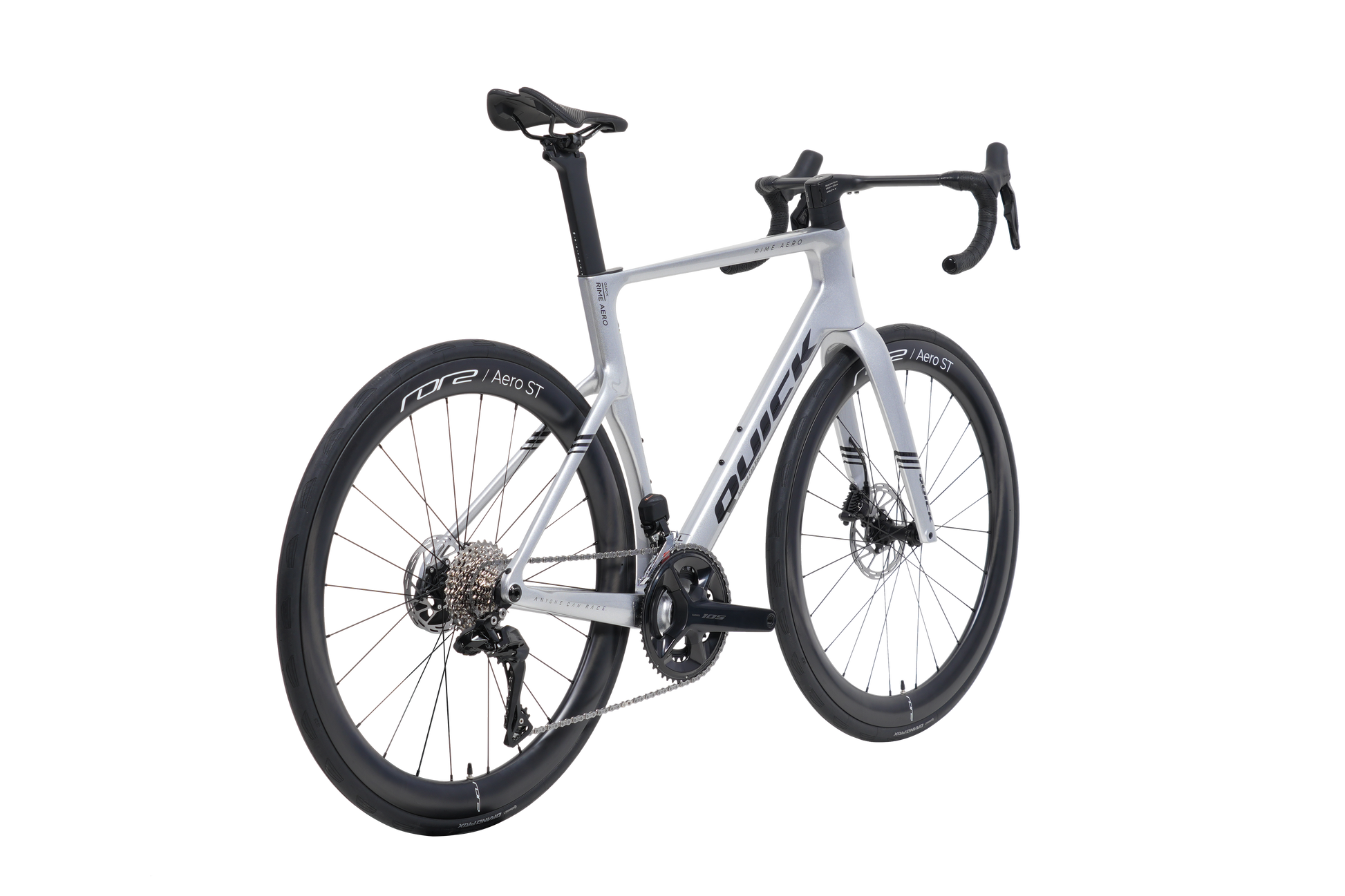

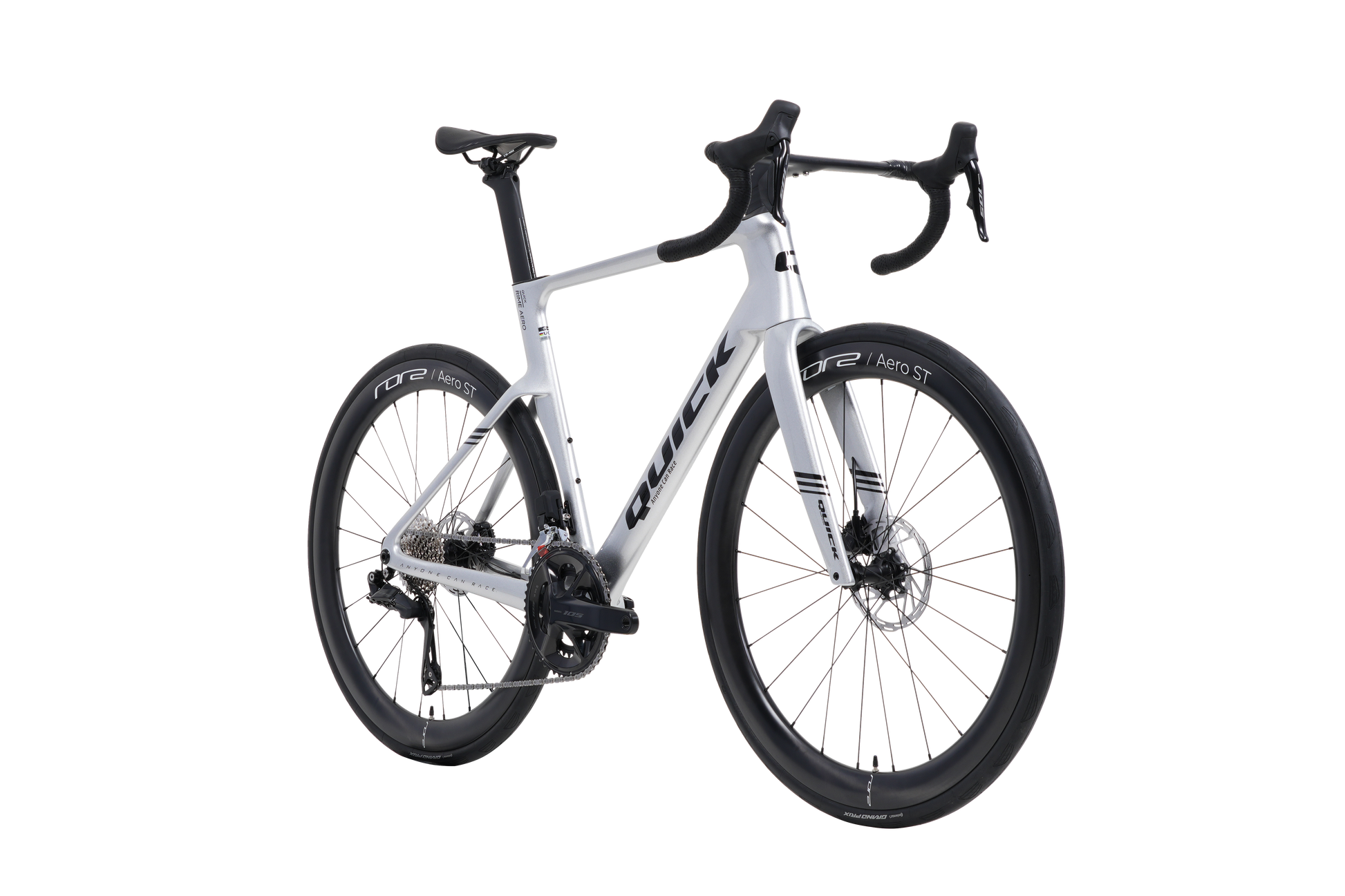

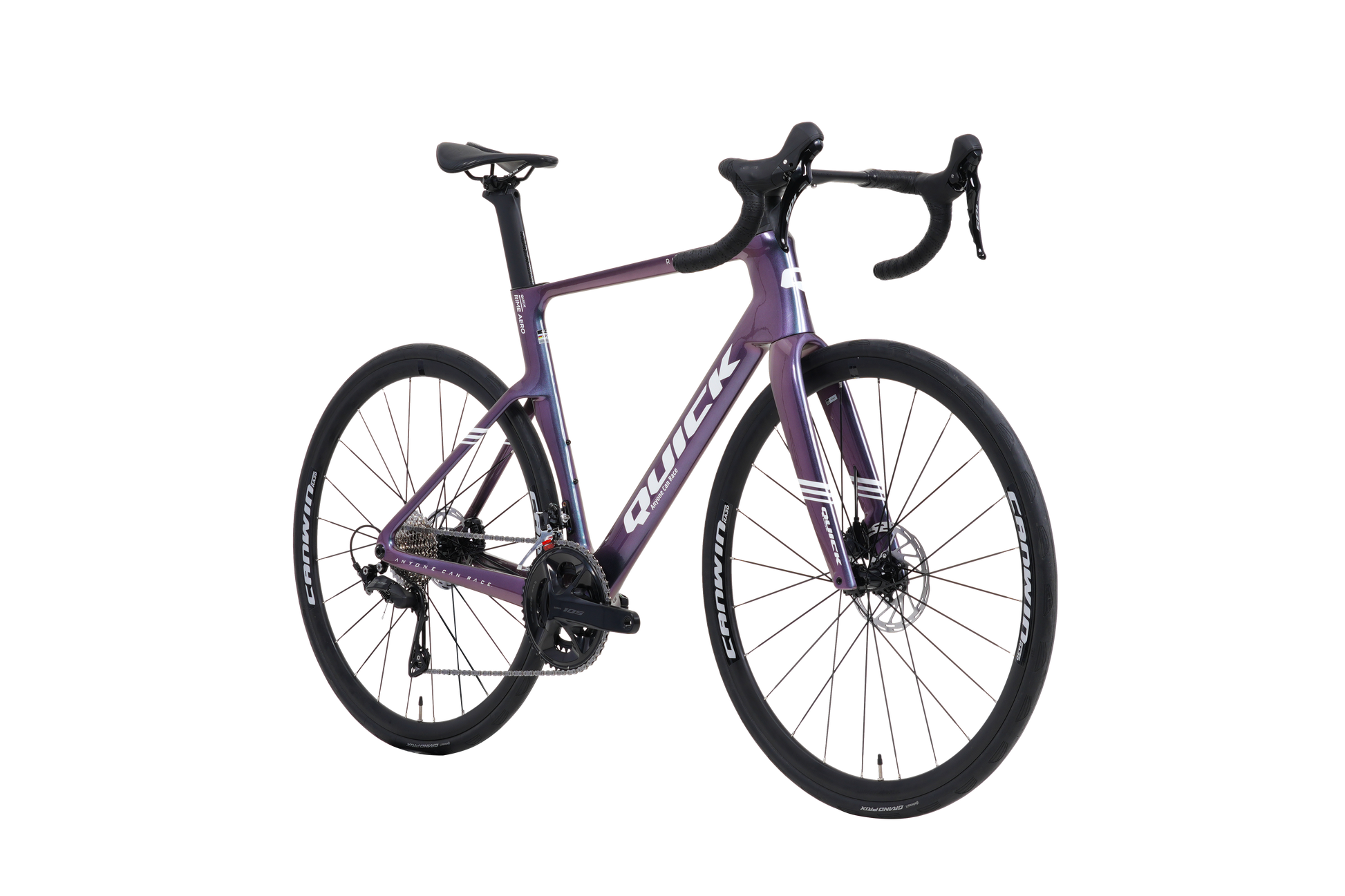

RIME AERO

The Quick RIME AERO is a race-oriented carbon-fiber road bike designed for riders who want speed, precision, and value in one refined package. Its aerodynamic frame profile helps reduce drag and maintain momentum at higher speeds, while the aggressive race geometry creates a responsive, efficient riding position for fast group rides, sprints, and competitive efforts. Hydraulic disc brakes provide confident, consistent stopping power in changing conditions, while the performance-focused drivetrain supports smooth, reliable power delivery. Finished with clean construction, polished details, and practical component choices, the RIME AERO offers a fast, capable ride for cyclists ready to push their performance further.

Key Features

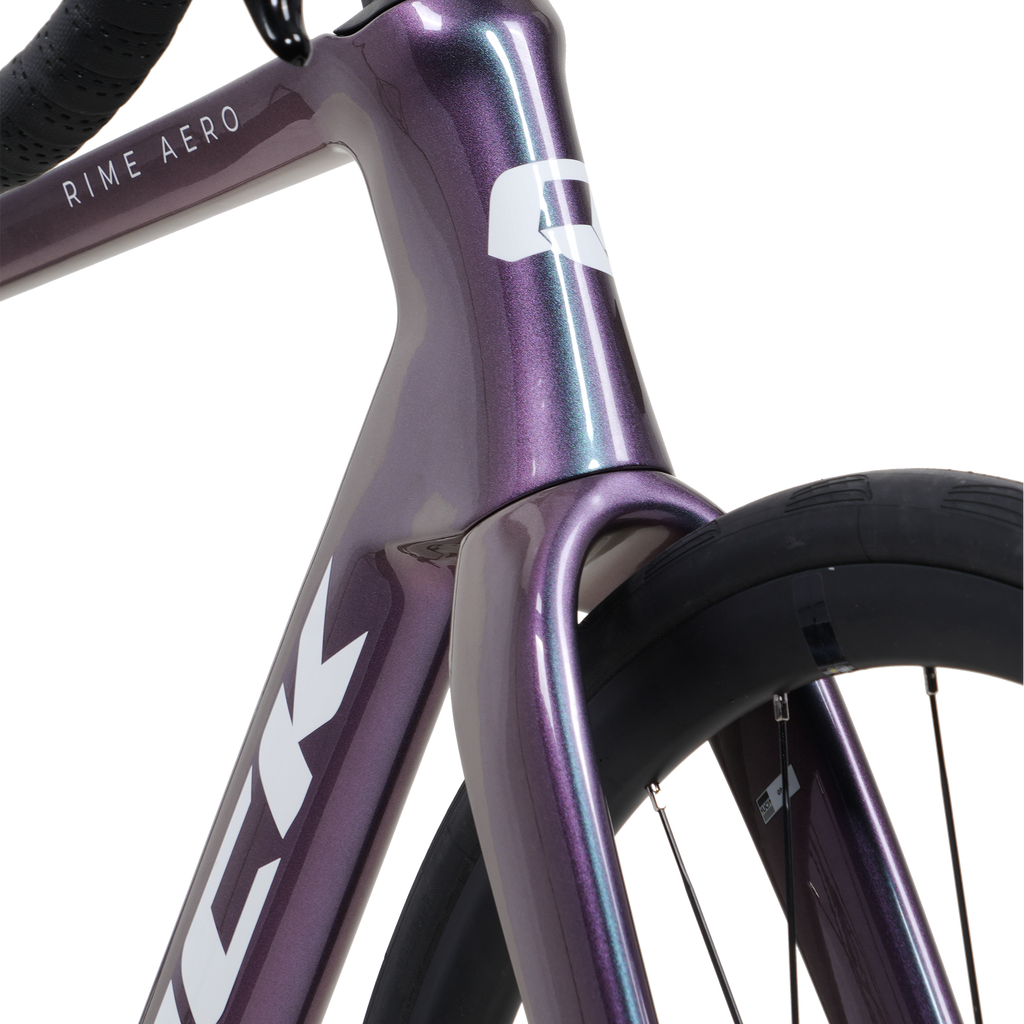

Aerodynamic Carbon Frame
Aerodynamic Carbon Frame
A streamlined carbon frame helps reduce drag and maintain speed on fast rides.

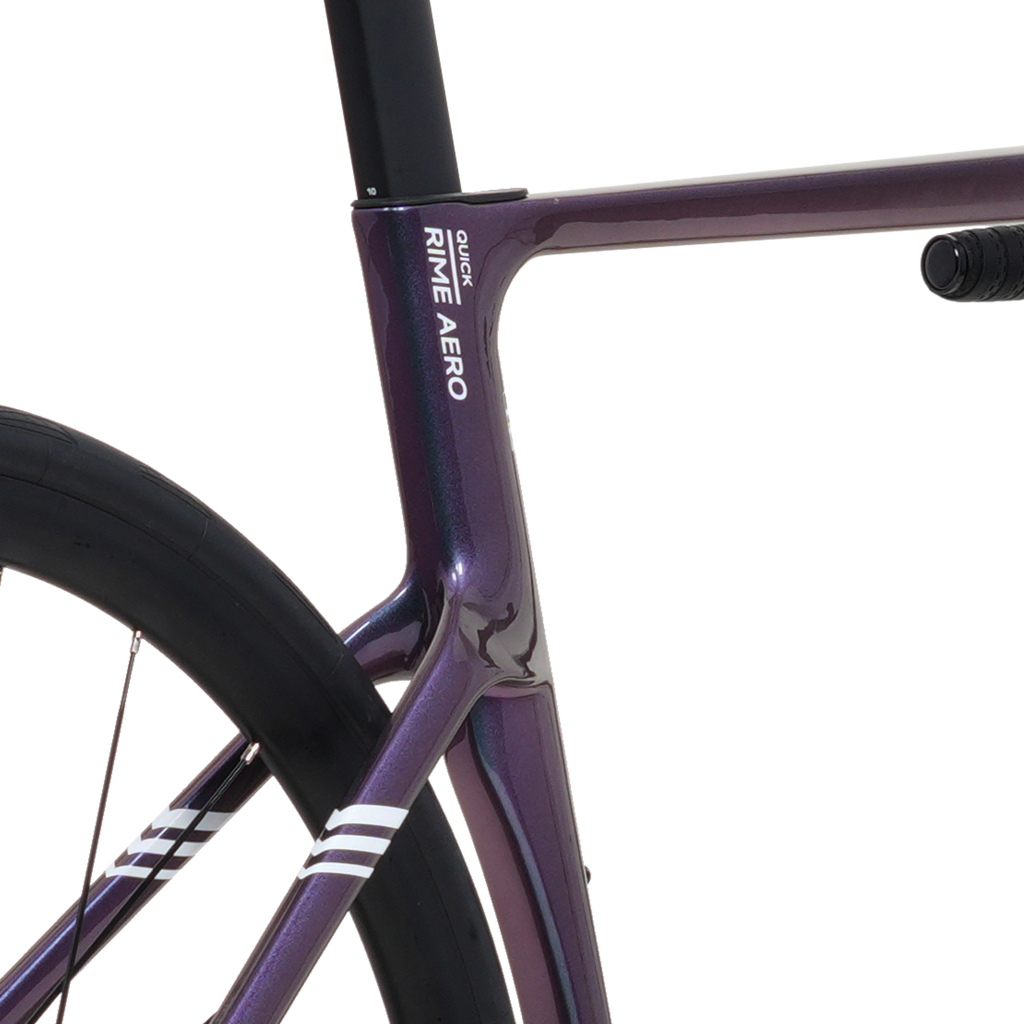

Race-Focused Handling
Race-Focused Handling
Aggressive geometry delivers responsive control and efficient power transfer.

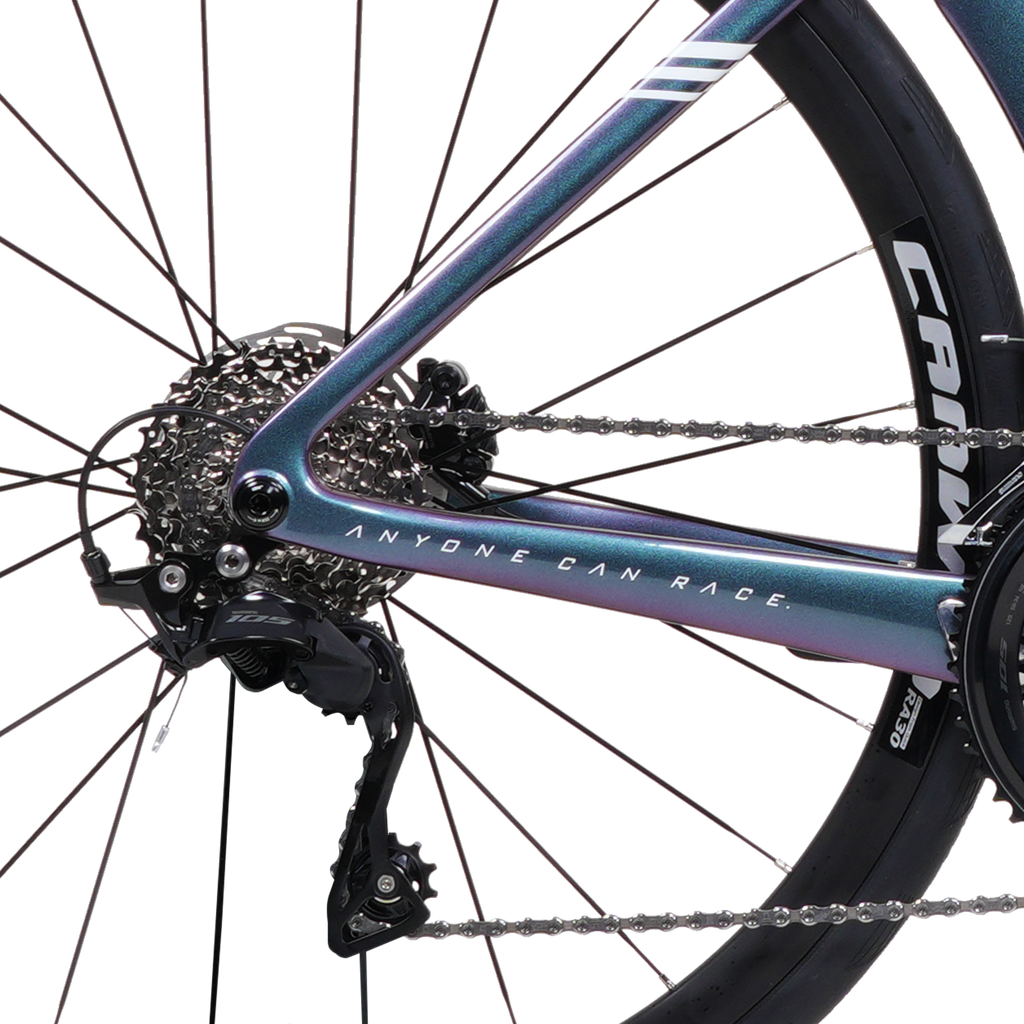

Hydraulic Disc Brakes
Hydraulic Disc Brakes
Provides confident, consistent stopping power in varied conditions.

Key Specifications

Model

  • Rime Aero

Material

  • T800 & M65

HT

  • 52x52mm

BB

  • T47-85.5mm Threaded

Thru-axle

  • F/100×12mm R/142×12mm

Tire (Max.)

  • ≤35c

Brakes

  • Flat Mount Disc Brake

Weight

  • Frame:1159g(±5%) Fork:469g(±5%)

Wheels

  • RORE Aero ST50

Inner Tube

  • 700x28c

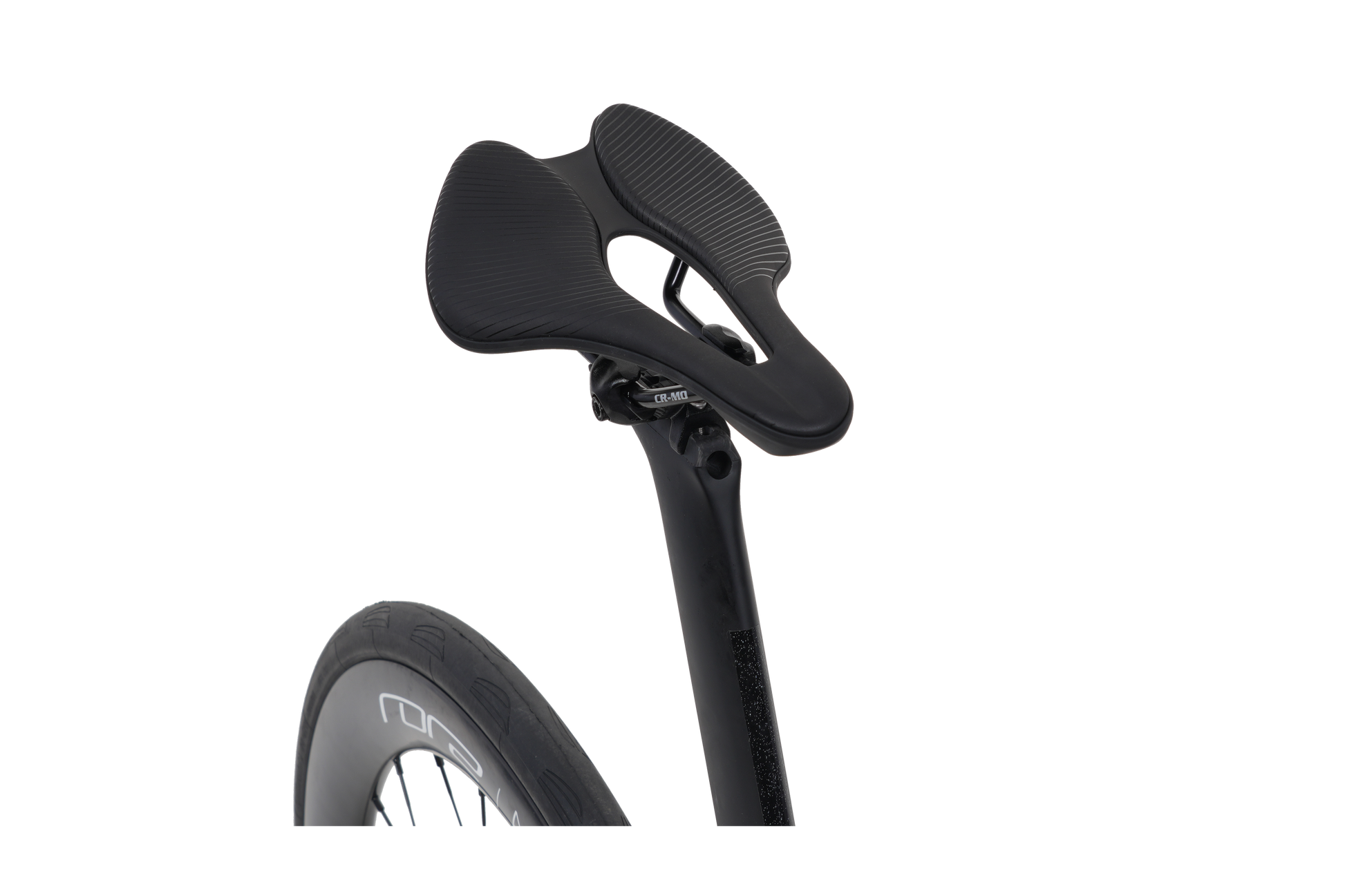

Saddle

  • SELLE ITALY Model X Light

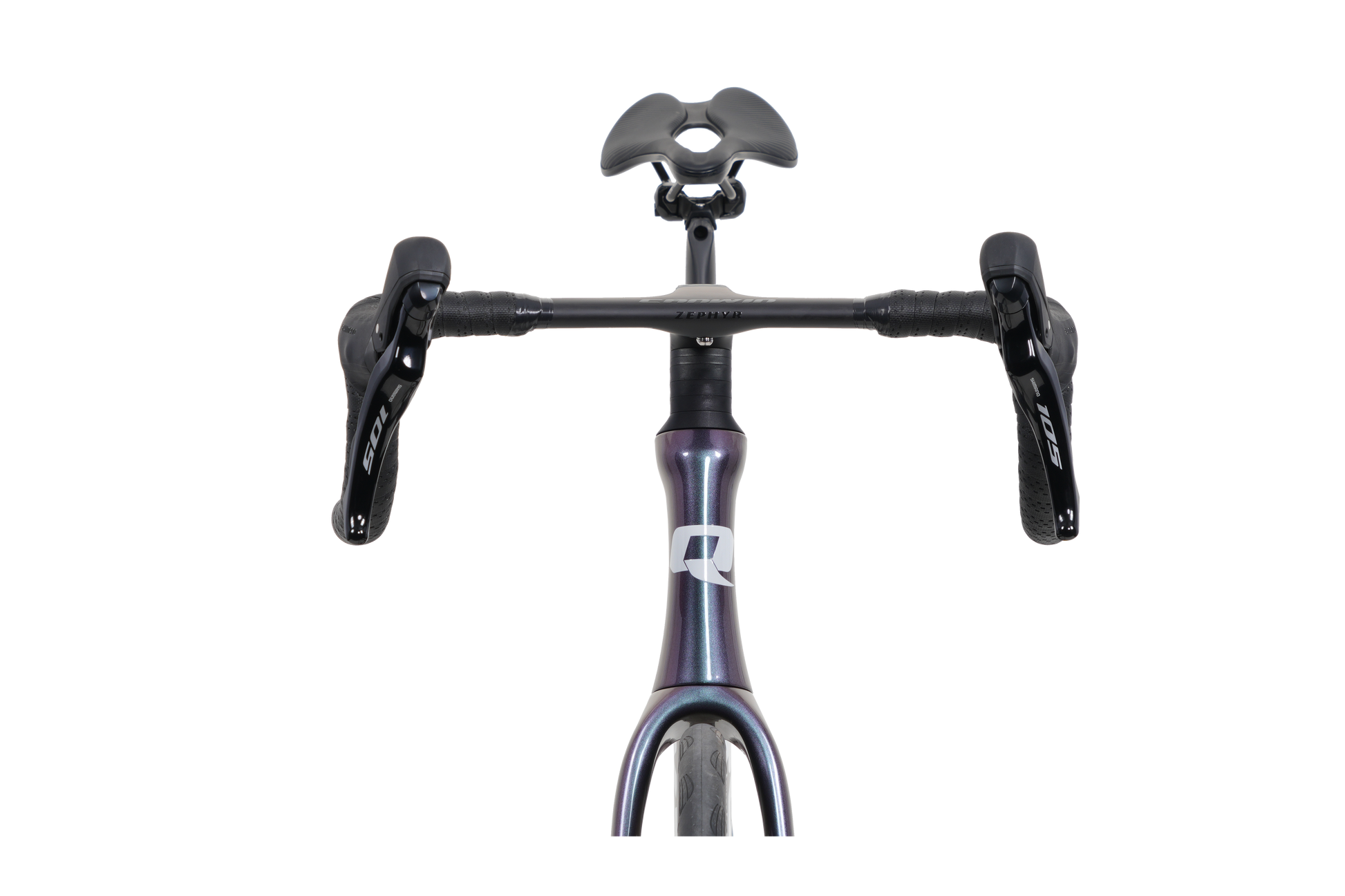

Handlebar

  • CANWIN ZEPHYR SL

Frame Specifications

FRAME
Size Options
SM/460, MD/490, LG/520, XL/550
Frameset
T800 & M65 Carbon-fiber aerodynamic road frame (1159g)
Fork
Aerodynamic carbon fork, designed to reduce drag and support stable, precise steering

Group Set Specifications

BRAKES
Front Brake
Shimano BR-R7170
Rear Brake
Shimano BR-R7170
Brake Rotors
IIIP&RO CL (160mm Front/140mm Rear)
DRIVETRAIN
Shift Levers
Shimano ST-R7170
Front Derailleur
Shimano FD-R7150
Rear Derailleur
Shimano RD-R7150
Cassette
Shimano CS-R7101-12 (11/34T)
Chain
Shimano CN-M7100
Crankset/Chainrings
Shimano FC-R7100 165/170mm Crank Length options & 50/34T Chainrings

Size & Fit

Ref Specification S / 460 M / 490 L / 520 XL / 550
A Frame Size / Seat Tube Length (mm) 460 490 520 550
B Effective Top Tube Length (mm) 531.6 541.7 561.8 577.3
C Seat Tube Angle (°) 74 74 73.5 73.5
D Head Tube Angle (°) 72.5 72.7 73 73
E Head Tube Length (mm) 120 140 160 183
F Chainstay Length (mm) 410 410 410 410
G Wheelbase (mm) 974.5 983.9 996.2 1012
H Fork Offset / Rake (mm) 45 45 45 45
I Bottom Bracket Drop (mm) 74 72 72 72
J Fork Length (mm) 370 370 370 370
K Standover Height (mm) 742 769 796 822
Stack-to-Reach Ratio (STR) 1.39 1.41 1.43 1.46
Reach (mm) 380 385 394 403
Stack (mm) 528.6 546.4 566.5 588.5
Handlebar Width & Length (mm) 380-90 380-100 380-110 400-120
Seatpost (cm) 35 35 35 40
